Misting & Cooling Connectors & Fittings
We have all the connectors you need to build your misting and cooling system. Compression fittings work with stainless steel tubing, copper tubing, or nylon tubing. Push to connect fittings work with just the nylon tubing. Read More...
The stainless steel and brass compression fittings are both rated for high pressure systems, up to 3000 psi if used with stainless steel tubing, and up to 1000 psi if used with copper tubing. To use, simply turn the nut to finger-tight and insert the humidification line; then, turn the nut 1 1/4 turns to create an effective seal.

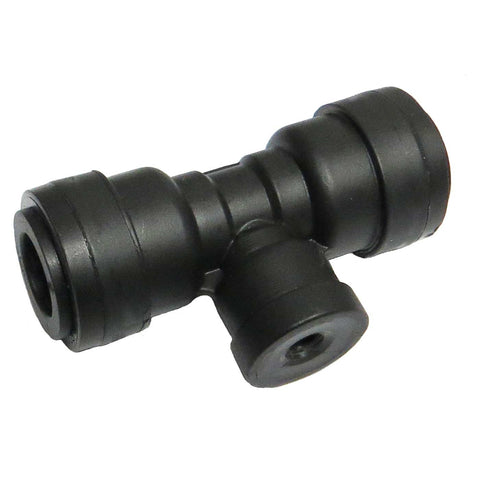

The brass push to connect fittings are rated for a working pressure up to 1000 psi, and the nickel plated push to connect fittings are rated for a working pressure up to 250 psi. Both are sometimes referred to as a push-in fitting, push connect fitting, or push fitting.
They are simple and easy to install and reconfigure, and no special tools are needed. Just cut the nylon tubing to size and push in firmly for an instant seal. To remove the tubing, simply push in the sleeve.
Click on the individual Connector page, to view its warranty and return policy.
