Misting & Cooling Nozzles Anti Drip Nickel With Filter-Long (pack of 20)

$ 155.90

Contact us for trade or volume discounts 1-480-947-7345.

Use this dropdown to choose a product.

Qty:

High pressure system is at least 250 psi.
Med pressure system is at least 180 psi, but less than 250 psi.
Low pressure system is at least 100 psi, but less than 180 psi.

View: .3mm Nozzle Video .5mm Nozzle Video

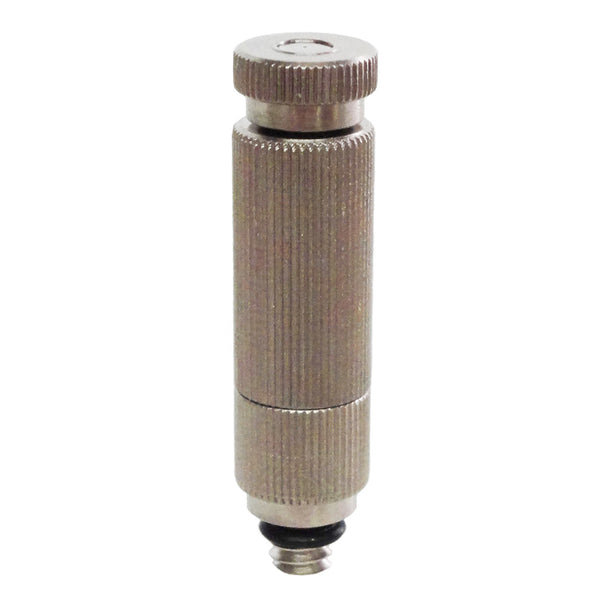

These patented misting anti drip nozzles are designed to accomplish an extremely high emission velocity with a low flow rate. Liquids are atomized into aerosol particles, which flash-evaporate evenly into the environment, creating the fine mist. The mist heads can atomize liquid even in climates with fairly high relative humidity.

They create an extremely fine fog, with a high percentage of droplets at less than 50 microns in size. The pin (impeller), orifice, and nozzle body are designed in such a way that when fluid is forced through, a very fine cone-shaped fog is created.

Our ISO 9001 certified quality control team ensures each misting nozzle maintains the required design specifications, tolerances, and consistent high quality.

Our misting and cooling nozzles create a very fine droplet size, ideal for greenhouse misting systems, warehouse misting and cooling systems, and industrial misting and cooling systems. They are also cleanable; removing the pin gives your solution better access to the interior of the nozzle.

The .15mm (.006") and .2mm (.008") nozzles can only be used with a high pressure system, with at least 250 psi.

The micro mist nozzle size allows it to be placed into small confined areas. No wrench is needed; just tighten or remove by hand. The self-sealing o-ring provides a leak proof seal; no tape or sealant is required. The o-rings and ball stem are Viton, for better wear when used in harsh environments or with chemicals.

These nozzles can be installed directly into rigid piping or tubing of almost any size, as long as there is an adequate wall thickness of at least 1/8".

IMPORTANT NOTES:
a. These anti-drip nozzles require a 5-10 business day lead time.
b. Please order carefully. We cannot exchange anti-drip nozzles that were ordered with the incorrect orifice size, thread size, or for the incorrect system pressure (psi).
